.280 Ackley Improved vs. 6.5 PRC: Deep-Dive Technical Comparison for Long-Range Hunters and Reloaders

In precision hunting, caliber choice is about more than just speed and energy. It’s about consistency under field conditions, ballistic efficiency over distance, and the subtle interplay between reloading flexibility and terminal performance. Two of today’s most capable cartridges for long-range hunters are the .280 Ackley Improved and 6.5 PRC.

They look different on paper. One is a modern wildcat-turned-SAAMI-standard with a classic 7mm projectile. The other is a magnum-class 6.5mm cartridge engineered from the ground up for long-range shooting. But both excel in the 400–800 yard hunting envelope.

Here’s the no-fluff, full-depth breakdown for serious shooters considering one over the other.

Case Geometry & Internal Ballistics

.280 Ackley Improved

• Parent case: .280 Remington (.30-06 derived)

• Shoulder angle: 40°

• Case capacity: ~65–67 grains of H2O (depending on brass and chamber)

• Base to shoulder length: ~1.948”

• Overall length: ~3.33”

• Pressure limit (SAAMI): 65,000 PSI

Internal Ballistic Notes:

• Improved shoulder geometry reduces case stretching, increasing brass life.

• Generous neck length (.538") aids with concentric seating and consistent neck tension.

• Functions best with slower-burning powders: H4831SC, RL26, Retumbo.

• Excellent case fill ratio (~90–105%) with 150–175gr bullets.

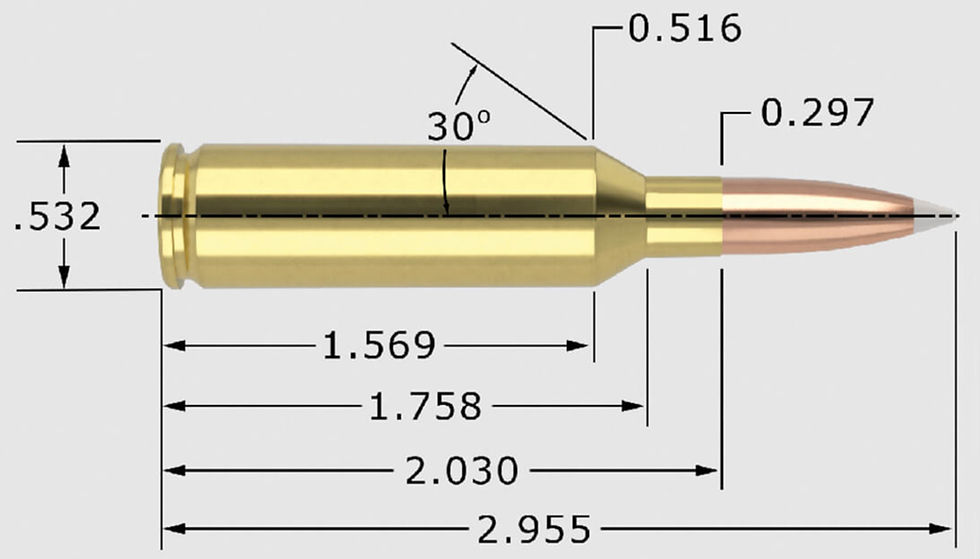

6.5 PRC

• Parent case: .300 Ruger Compact Magnum

• Shoulder angle: 30°

• Case capacity: ~62–63 grains H2O

• Base to shoulder length: ~1.878”

• Overall length: ~2.955”

• Pressure limit (SAAMI): 65,000 PSI

Internal Ballistic Notes:

• Short, fat magnum profile promotes efficient powder burn.

• Designed to feed from standard short-action magazines (2.955” max COAL).

• Optimized for 140–147gr long-ogive bullets with high BCs (Hornady ELD-X, Berger Hybrids).

• Fast burning in 20–24” barrels using H1000, RL26, H4831sc.

Barrel Life & Throat Erosion

Additional Considerations:

• The 6.5 PRC’s shorter neck can lead to faster carbon ring formation and requires more frequent bore maintenance.

• .280 AI generally benefits from slower powder burn and longer bullets seated deeper, reducing early throat burnout.

Twist Rate Optimization

.280 Ackley Improved:

• Standard twist: 1:9" (older), but modern builds often run 1:8" or 1:8.5"

• Optimal for stabilizing long 160–180gr VLDs and LR hunting bullets (Berger, Hornady, Nosler ABLR)

• 1:8" strongly recommended for anything over 160gr

6.5 PRC:

• Standard twist: 1:8"

• Required for stabilizing 140–147gr ELD-X, ELD-M, Berger Long Range Hybrid Target

• Some manufacturers moving to 1:7.5" or 1:7" for ultra-long-range use in colder temps

Gyroscopic Stability (SG)

• Target SG range: 1.4–1.8 for high-BC bullets

• Both calibers can maintain stability to 1,200 yards+ with proper twist rates

• .280 AI tends to lose stability with very heavy 7mm projectiles (>180gr) unless built with a 1:8” or faster twist

Ballistic Coefficients & Wind Drift

Sample Load Comparison @ 500 yards:

Observation:

• The 6.5 PRC has superior wind resistance due to higher BC bullets available for its bore diameter.

• The .280 AI carries slightly more momentum due to heavier projectile weights, but is more susceptible to drift.

• Both maintain supersonic speeds well beyond 1,000 yards.

Transonic Behavior & Effective Ranges

• Supersonic threshold: ~1,125 fps

• Transonic stability is critical for long-range hits. Bullet BC and velocity determine how far a bullet stays supersonic.

Key Insight:

• 6.5 PRC’s high-BC 147gr bullets carry velocity deeper into the flight path.

• .280 AI remains stable further if using 175gr VLDs but requires faster twists and careful load work.

Terminal Ballistics: Real-World Field Performance

.280 Ackley Improved

• 160–175gr bullets deliver excellent sectional density and controlled expansion at long ranges.

• High retained weight (Nosler ABLR, Partition, Swift Scirocco II) ensures penetration on elk/moose.

• Performance shines inside 600 yards on medium and large game with expansion and deep wound channels.

6.5 PRC

• High-speed expansion with 143–147gr ELD-X and ELD-M

• Efficient hydrostatic transfer on deer-sized game, but can result in shallow penetration on elk with poor angles

• Outstanding performance inside 500 yards; beyond that, expansion becomes less reliable unless using bonded or monolithic bullets (e.g., Hammer, Barnes LRX)

Terminal Summary:

• .280 AI excels in deep-penetration and large game performance at range.

• 6.5 PRC offers superior wound cavities on whitetail/mule deer, but marginal at extreme angles on elk unless matched with appropriate bullet design.

Factory Ammo & Brass Availability

Observations:

• 6.5 PRC has wider factory ammo support, including match and hunting loads.

• .280 AI is more handloader-centric. Factory offerings are improving but less widely stocked.

• Both calibers see fluctuating brass supply—bulk ordering is recommended.

Reloading Depth & Efficiency

.280 AI Reloading Notes:

• Works well with longer bullets seated to mag length (3.30")

• Sweet spot powders: H4831SC, RL23, RL26, IMR 7977, Retumbo

• Load densities typically 90–102% for best ES/SD

6.5 PRC Reloading Notes:

• More sensitive to seating depth

• Load data tightly compressed at max SAAMI pressure (small margin for error)

• Excellent performance with H1000, RL26, H4350 (for lighter bullets)

Velocity Efficiency (fps per grain powder):

• .280 AI: ~43–47 fps/gr

• 6.5 PRC: ~45–50 fps/gr

Summary: Engineering Trade-offs

Final Thoughts

Both the .280 Ackley Improved and 6.5 PRC are outstanding precision hunting cartridges—but they are tools for different mindsets.

• If you’re a reloader, want a cartridge that can be tuned across multiple bullet weights, and prioritize penetration and flexibility, the .280 AI is unmatched.

• If you’re looking for a modern, wind-cheating, flatter-shooting cartridge with strong factory ammo support and excellent long-range consistency, the 6.5 PRC is hard to beat.

This isn’t about which one is "better." It’s about which one fits your field conditions, hunting goals, and precision shooting standards.
